DEEPCOOL DQ650-M-V2L

12,299.00 7,499.00

The DQ650-M-V2L fully modular 650W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ650-M-V2L offers better reliability for your PC system.

Description

80 PLUS® Gold Certified
Get all the power you need with a maximum 90.4% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ650-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)
Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise
Details Discovered
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
X1

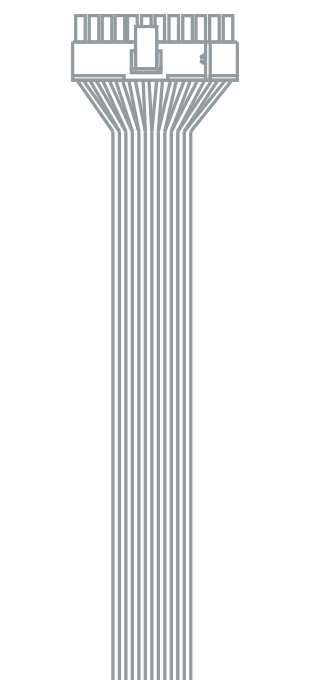

Main Power Connector 24(20+4)Pin
X1

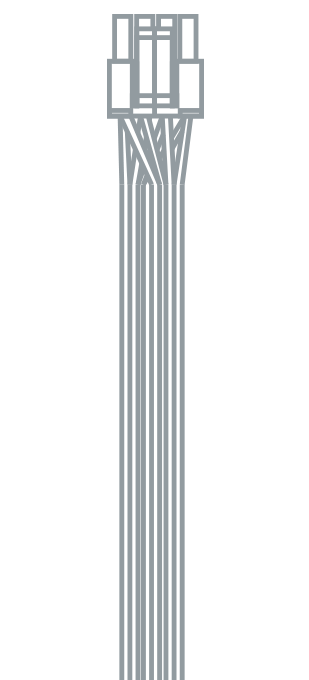

EPS 12V Connector 8(4+4)Pin
X1

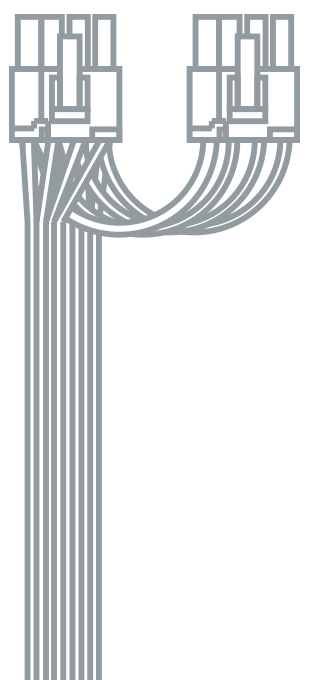

PCI-E (6+2)Pin x2
X1

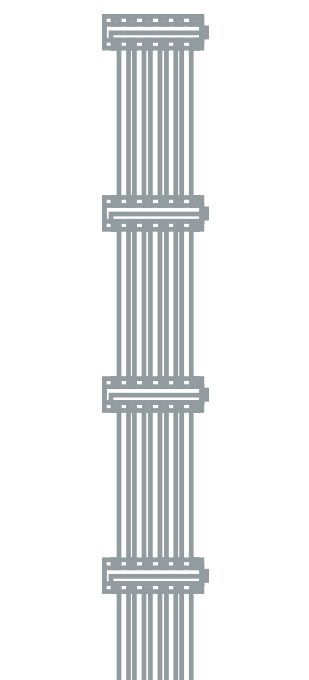

SATA x4
X2
4Pin Peripheral x2 & SATA x2

Technical Spec

Model
DQ650-M-V2L
Type
ATX 12V V2.31
Certifications
80PLUS GOLD
Dimension
150×160×86mm (W × L × H)
Output Capacity
650W
Input Voltage
100-240V
Input Current
10.0A
Input Frequency Range
47-63Hz
Fan Size
120mm
PFC
Active
Power Good Signal
100-500ms
Hold Up Time
>16ms (80%  Loading)
Efficiency
>90% Under Typical Load (50%  Loading)
Standby Efficiency
ErP Lot 3 2014
Protection
OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature
0-40°C
Regulatory
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF
100,000 Hours
EAN
6933412798910
P/N
DP-GD-DQ650-M-V2L
Warranty                                                                10  year
